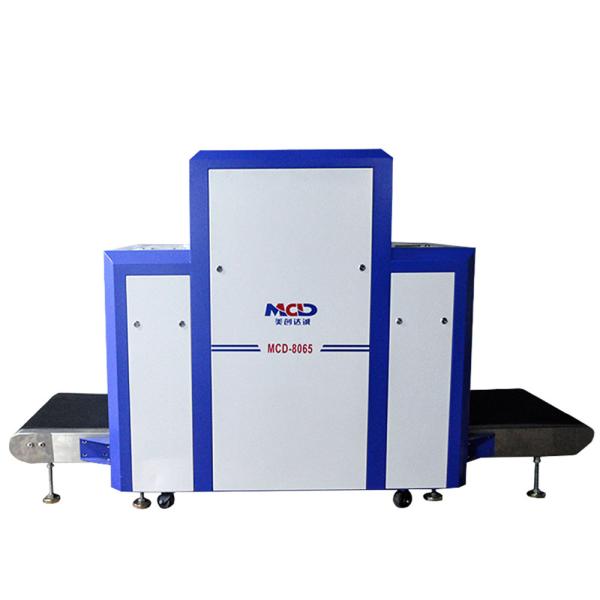

MCD-8065A X-Ray Luggage Scanner
General Specification
1. 1.Tunnel Size: 800(W)*650(H)mm
2.Conveyor Speed: 0.20m/s
3.Conveyor Max Load: 200 kg
4.Dose per Inspection: <1 uGy/h
5.Resolution: <0.0787 mm Metal Wire
6.Spatial resolution Level: φ1.0 mm , Vertical:φ1.0 mm
7.Through resolution: φ0.254 mm
8.Penetration: 40 mm Steel
9.Film Safety: Guarantee ISO1600 Film
10.X-ray Leakage: 0.05 uGy/h (at a distance of 5cm From external housing)
11.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
12.Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
13.Operation Power:220AVC/(±10)50Hz±3Hz
14.Power Consumption:1.0KW(Max),0.3KW(working)
15.Noise: <55 dB
X-ray Generator
1.Generate direct: Upward
2.Generate angle: 80 degree
3.Anode Voltage: 100~160Kv adjustable
4.Anode power: 0.4 to 1.2mA adjustable
5.Cooling / Duty Cycle: Oil Cooling /100%
Image System
1. X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
2. Monitor: High Resolution Color, LCD Accord, 17 inch
3. Detector:2
4. Color display: full color
5. Image Processing: Edge enhancement, image strengthening, image lightening,
reducing darkening, image returning, image retrieval.
6. Image Grey Level: 4096
7. Image Max Resolution: 1024 * 1280 pixel
8. Image Processing: 24bit for processing real time
9. Image storage: Storage 60000 pictures in real time
10. Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen
continuous observation
11.Multi-energetic distinguish objects: organic objects in orange, inorganic
objects in blue, mixture in green
12.High-energy/low energy: switch from high energy to low energy
13.Assist to detect drug and explosive powder
Feature and Application:
Commercial buildings,Factories(to find needle in clothing, shoes, bags),
Courthouses,Embassies,Government buildings,Military installations,Prisons
Hotels,Schools,Convention centers,Security checkpoints.
