34mm Penetration 150kg Load 65x50cm X Ray Baggage Scanner

34mm Penetration 65x50cm X Ray Baggage Scanner With 150kg Load Belt

Feature

1. Alarm by sounds & light: Alarm by sounds and light when conform to condition.
2. Network interface: Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray: Transmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendly: The monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
5. Simple operation by mouse: Without keyboard and work table, control by mouse, save space.
6. Turn off by a key control: Turn off the machine only need one step: Revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.

Technical parameter

1. Tunnel Size: 650(W)*500(H)mm

2. Conveyor Speed: 0.22m/s

3. Conveyor Max Load: 170kg

4. Dose per Inspection: <1uGy/h

5. Resolution: <0.0787mm Metal Wire

6. Operation Power:220AVC/(±10)50Hz±3Hz

7. Power Consumption:0.65KW(Max)

8. Spatial resolution Level:dia0.1mm , Vertical:dia0.1mm

9. Penetration: 43mm Steel

10. Film Safety: Guarantee ISO1600 Film

11. X-ray Leakage: <0.05uGy/h (at a distance of 5cm From external housing)

12. Noise: ＜58 dB

X-ray generator

Orientation: Vertically upward
Tube current: 0.4~0.5ma(adjustable)
Anode voltage: 80 kv(adjustable)
Angle: 60
Generator cooling/working periods sealed oil bath with forced air/100%

Storage temperature: -20 degree to 60 degree

Application

Used in the factory testing of security products and business units such as: electronic factories,

shoe factories, toy factories, courts, railway stations, and event bag, line security management

package

65x50cm X Ray Baggage Scanner

150kg Load X Ray Baggage Scanner

34mm Penetration X Ray Baggage Scanner

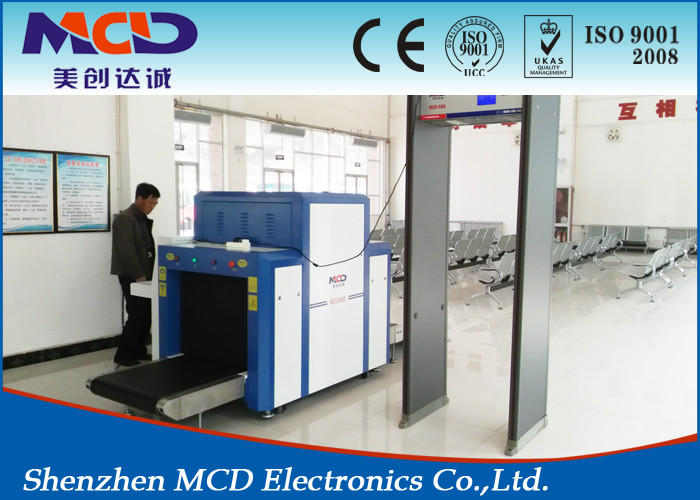

34mm Penetration 150kg Load 65x50cm X Ray Baggage Scanner Images
