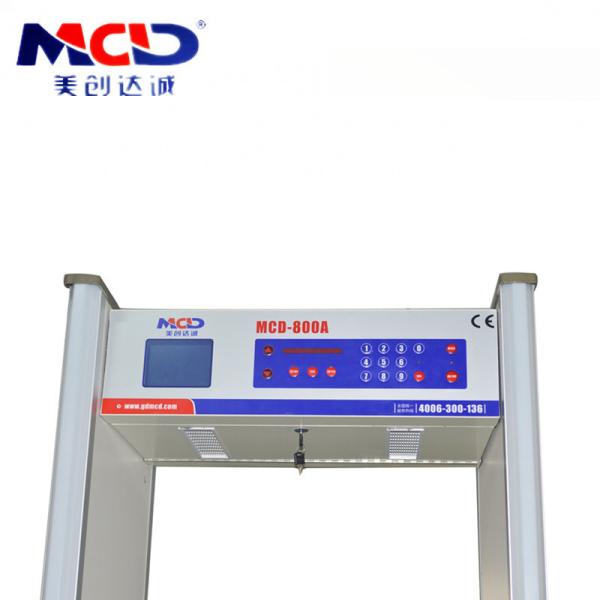

Security Door Frame Metal Detector / Coach Station Body Scanner

Brand Name : MCD

Model Number : MCD-800A

Certification : ISO , CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T , Western Union , L/C

Supply Ability : 50pcs/week

Delivery Time : Normally within 5 working days

Packaging Details : carton or wooden

Alarm way : Audio Alert,and LED Location lamp work at same time

Detection zone : 10 Zones(800C) 8 Zones(800A)

Display ways : 6.0" Large screen LCD

Sensitivity : 0-99 adjustable

Tunnel Size : 200(L)*70(W)*56(H)cm

Dimension : 222(L)*80(W)*67(H)cm

Net Weight : 71.5kg

Package Size : Main Body: 230*72*25cm(2 piece /carton) Host Machine:78*47*28cm(1 piece/carton)

Contact Now

Security Door Frame Metal Detector Body Scanner for Coach Station

Quick Detail :

10 Zones(800C) , 8 Zones(800A)
tender produts
with 10 years experience in this field
12 months warranty
6.0" LCD Screen
0-99 adjustable senstivity

Product Features:

1. 6.0" Large screen LCD, user-friendly, simple and easy Chinese & English operation interface.

2. Optional 8 / 10 detection regions has high brightness LED indicator to position metals more

accurately.

3. More than one doors can work together,max 20 sets doors in a group.Digital control over the

computer.

4. High, low, mute alarm mode can be adjusted in different occasions according to requirements.

5. The sensitivity of each detection zone can be adjustable independently between 0-99.

6. The combinations of digital and analog technology reduce the false positives,

and improve the door stability.

7. With remote control, easy operation.

8. With modular design, easy demolition and installation.

Product Parameters:

Detection Zone	10 Zones(800C) 8 Zones(800A)
Sensitivity	0-99 adjustable
Alarm way:	Audio Alert,and LED Location lamp work at same time
Dispaly way	6.0" Large screen LCD
Pass rate	>40 people/min
Power	220V AC,50/60HZ
Power wastage	35W
Tunnei size	200(L)70(W)56(H)cm
Dimension	222(L)80(W)67(H)cm
Net weight	61/kg
Gross weight	71.5/kg

Application:

It is popular adopted in Jail house, Customs, Airport, Gymnasiums, Exhibition Centers, factory and

so on.

Security Door Frame Metal Detector / Coach Station Body Scanner

MCD-800 walkthrough metal decetor.pdf
